Item specifics
  • Item Height: 4
  • Brand Name: careslong
  • Model Name: Motorcycle Speedometer Tachometer Gauge
  • Item Width: 8
  • Special Features: Speedometer, Odometer, Tachometer, Fuel Level Display,
  • External Testing Certification: CCC
  • Item Length: 15.5
  • Material Type: ABS
  • Item Diameter: 0
  • Item Weight: 0.3
Product Description

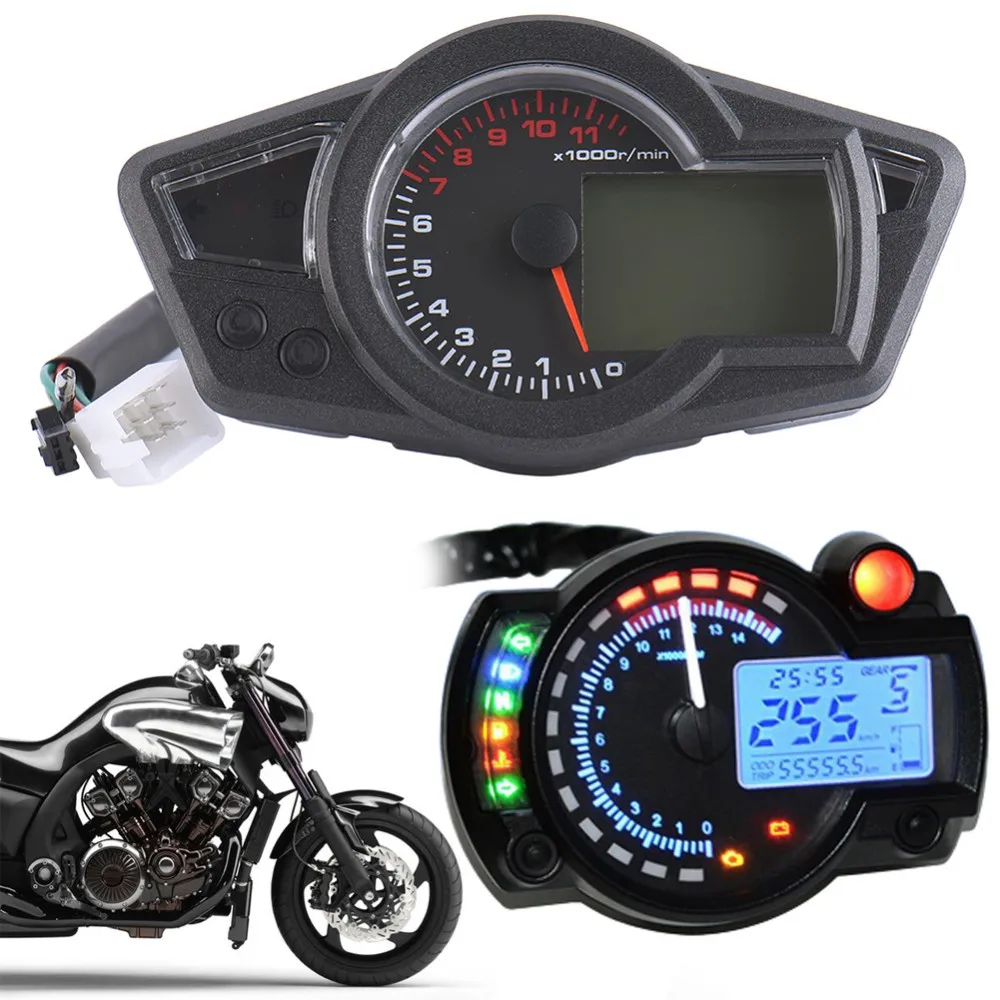

Motorcycle Black 12000 RPM Multi Function Odometer Speedometer Tachometer Gauge Fuel Level Display Left and Right Indicator N Gear

Fitment: Universal fit for all motorcycles with DC 12V 2 4 cylinders

ALL-IN-ONE Function: Speedometer, Odometer, Tachometer, Fuel Level Display, Left and Right Indicator, N Gear, Battery, Water Temperature Indicator
LCD display: Speed, Odometer, Trip, Meter, Gear position, Fuel level and Real-time. High Temperature Resistant and Fireproof ABS Material- Safe and Environmental.
Product Description

Size: (As the picture shown)
Length: 15.5cm
Width: 8cm
Height: 4cm
Display Size: approx. 5cm(L) X 3cm(W)
Color: Black
Main Backlight: Blue
Display: LCD Digital
Power Voltage: DC 12V
RPM max display: 15000
Operating temperature: -30°C ~ 80 °C
Speed max. Display: 199km/h
Odometer distance max display: 99999.9km
Material: ABS Housing + LCD digital display

Functions:
• Speed Display (kmh/mph)
• RPM Display
• Fuel Level Table
• Oil pressure warning light
• Check engine (warning) light
• Water Temperature (coolant temperature)
• Show time (hours & minutes)
• Metric units switch
• Waterproof

Wiring instructions: (only work with 2 or 4 cylinder)
1. Orange: left turn signal light
2. Light Blue: right turn signal light
3. Dark Blue: low-high beam light
4. Blue and White: water temperature
5. Yellow and White: gasoline gauge take unit
6. Black and Yellow: speed (connected to the engine pulses)
7. Red: positive
8. Green: negative
9. Black: power switch
10. Green and Yellow: hand brake parking lights
11. Green, white magnetic induction line

Notes: Do NOT wired on the headlight if it had been modified as the HID Xenon light. Instead, connect it on the headlight control wiring.
  • Professionals install is strongly recommended to avoid trouble caused by inexperienced installer!
  • Please Read All Description and Fitment Before Ordering the Product.

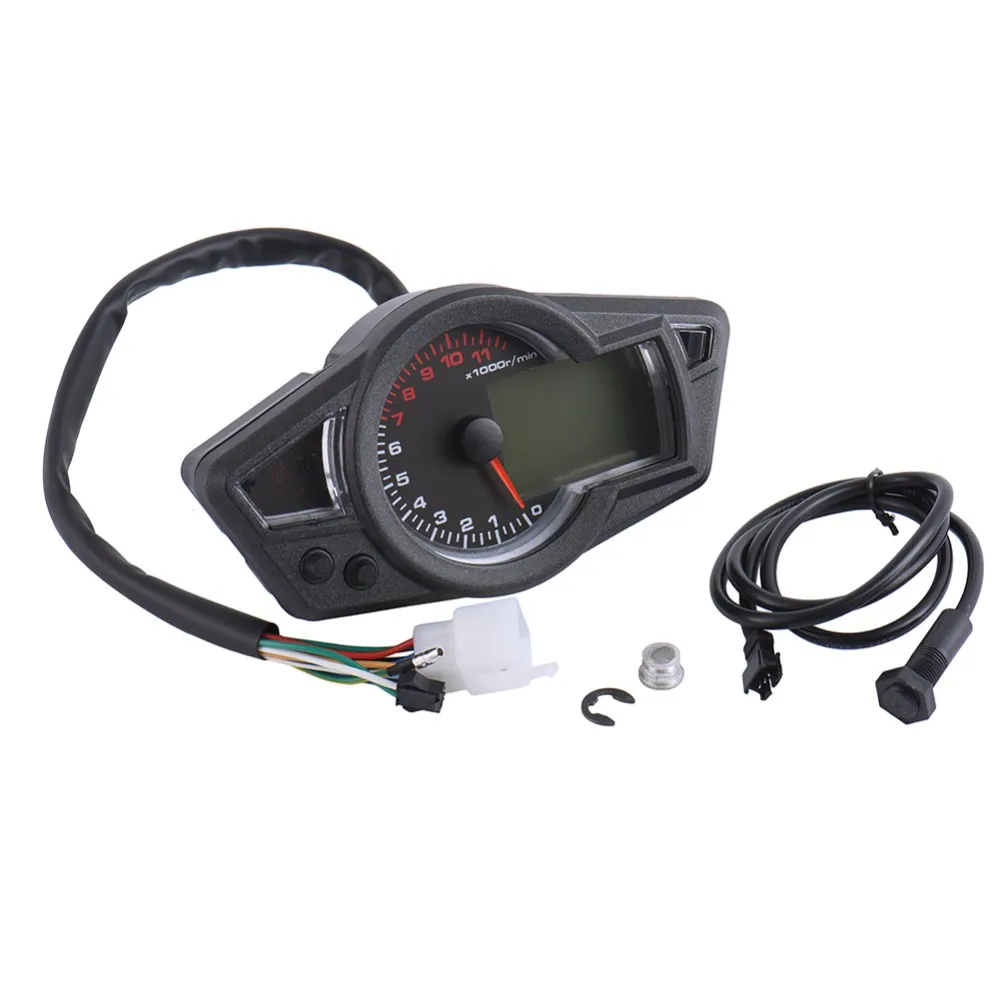

 Package includes: (with box)

1X Motorcycle RPM 12000 LCD digital odometer speedometer
1X Sensor cable
1X Magnetic steel
1X Instruction Manual
