Item specifics
  • Brand Name: R-EP
  • Model Name: AUP_302
  • Item Diameter: 3.94
  • Material Type: abs
  • Item Height: 2.76
  • Item Width: 3.94
  • External Testing Certification: CE
  • Item Weight: 320
  • Item Length: 3.94
  • Special Features: Motorcycle Digital Speedometer Odometer
  • Place of origin: Guangdong,China
  • Warranty: 1 year
  • Gear Indicator: N, 1, 2, 3, 4, 5, 6
  • Show Time:: Hours & Minutes
  • Working Voltage:: 8-18V
Product Description

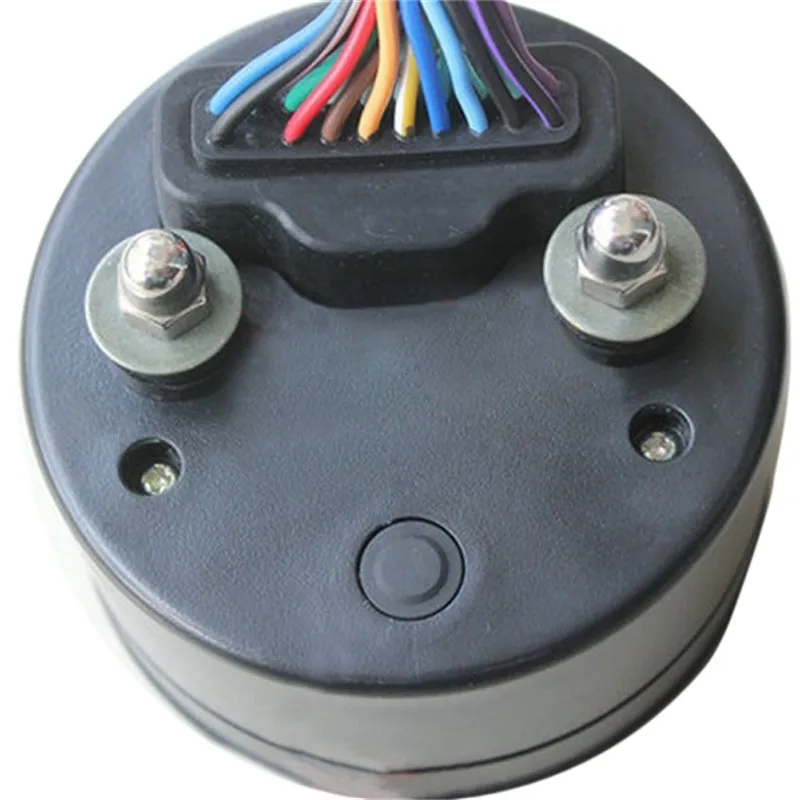

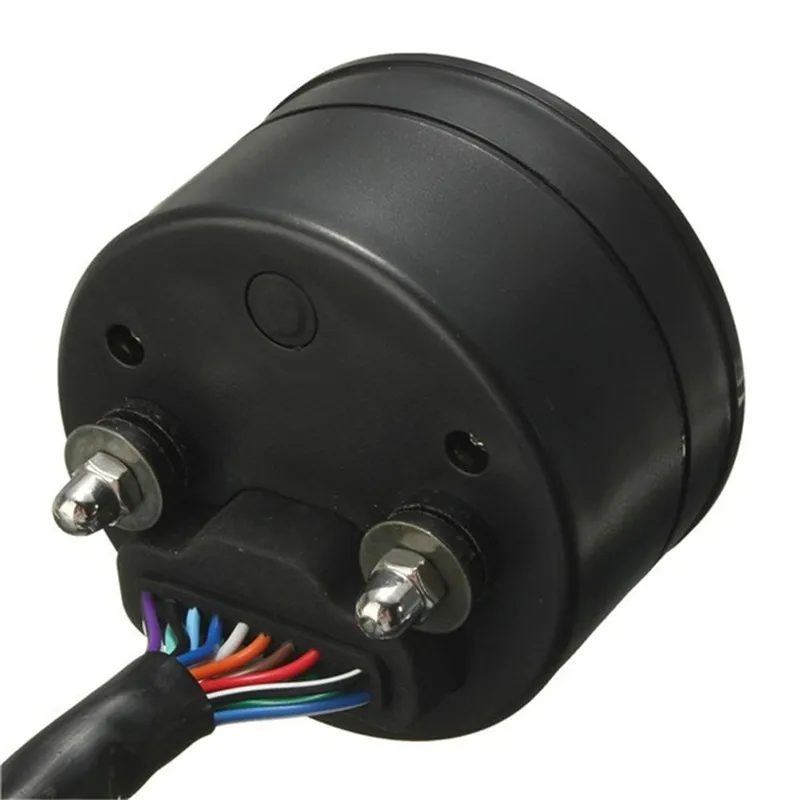

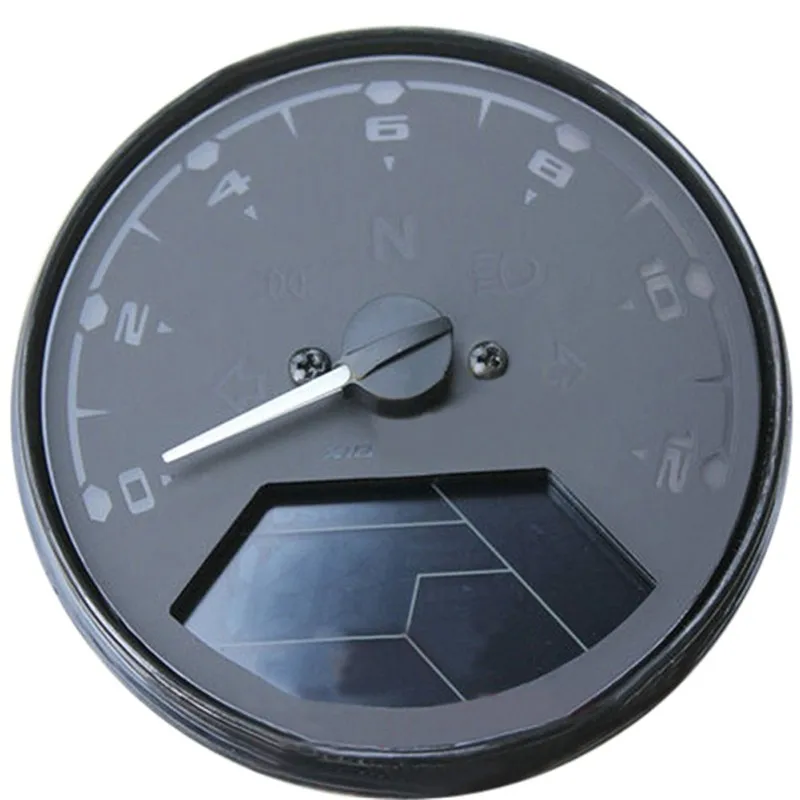

New Universal 12000RMP LCD Digital Speedometer Odometer Tachometer 1-4 Cylinders Motorcycle Digital Gauge



Features:
- Kilometer and miles switch
- It can be apply to different vehicles with different diameter.Can be set for all size of wheel rim.
- It can be apply to different displacement vehicles.
- Fuel indicator is suit for the oil sensor with 510Ohm (such as Honda ) 100 ohm (such as yamaha), If your motorcycle do not have oil sensor, then, ignore this.
- Easy assembly,Uv protection, anti-dazzle.
- Resistance to high pressure: instant can withstand voltage 100V.
- Waterproof, shockproof, anti-lightning
- On the back button switch mileage subtotal.
- LED display fuel level, low fuel warnning and blinkerin.
- LED shows left and right blinker, and high beam light,gear,Distance, Speed and so on.
- Adjustable wheel perimeter.
- Fits for all style motorcycle (1 / 2 / 4 Cylinders motorcycle)
- Fuel level table
- Over speed warning light
- Pane backlight luminescence.
- Left turing, right turing, headlight indicator

epc-aup-302-1-l



Specifications:

  • Features:
  • - Kilometer and miles switch
  • - It can be apply to different vehicles with different diameter.Can be set for all size of wheel rim.
  • - It can be apply to different displacement vehicles.
  • - Fuel indicator is suit for the oil sensor with 510Ohm (such as Honda ) 100 ohm (such as yamaha), If your motorcycle do not have oil sensor, then, ignore this.
  • - Easy assembly,Uv protection, anti-dazzle.
  • - Resistance to high pressure: instant can withstand voltage 100V.
  • - Waterproof, shockproof, anti-lightning
  • - On the back button switch mileage subtotal.
  • - LED display fuel level, low fuel warnning and blinkerin.
  • - LED shows left and right blinker, and high beam light,gear,Distance, Speed and so on.
  • - Adjustable wheel perimeter.
  • - Fits for all style motorcycle (1 / 2 / 4 Cylinders motorcycle)
  • - Fuel level table
  • - Over speed warning light
  • - Pane backlight luminescence.
  • - Left turing, right turing, headlight indicator
  • Gear Indicator: N, 1, 2, 3, 4, 5, 6
  • Show Time: Hours & Minutes
  • Operating Temperature: -20 ~ 70 degrees centigrade
  • Storage Temperature: -30 ~ 80 degrees centigrade
  • Working Voltage: 8-18V
  • Digital Display Speed: Speed range 0--199km/h or mph,deviation +10%.
  • Digital Display Odo Distance: Distance range 0--99999.9km or miles
  • Needle Display RPM: Range 0-12000 r/min RPM,deviation +5%.
  • Color: Black
  • Light Color:
  • - High Beam: Blue
  • - Left and Right Blinker: Green
  • - LCD Screen Backlight: Blue, always on

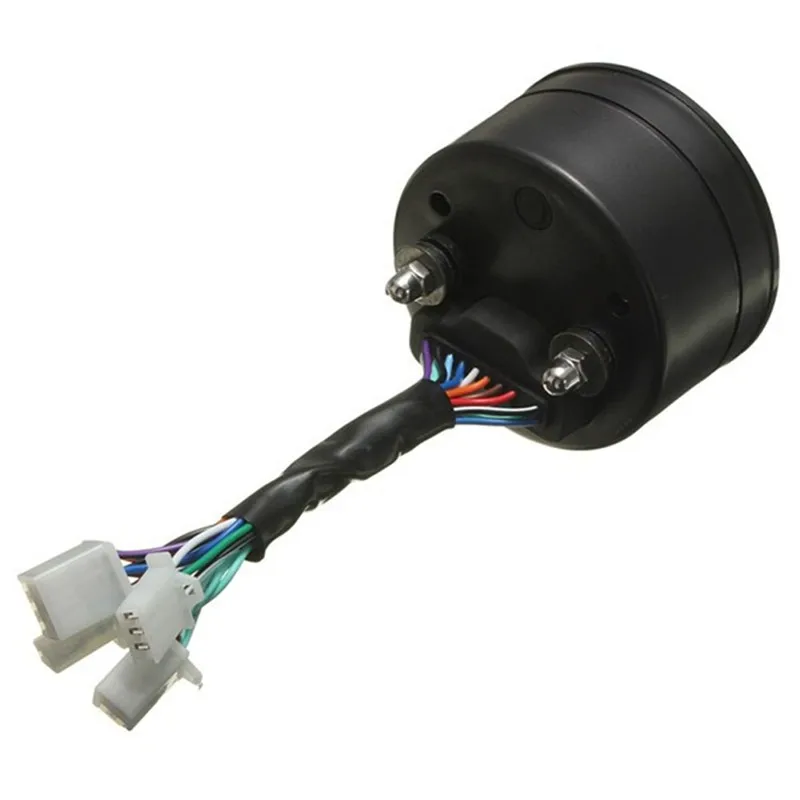

  • Plug Wire Color Description:
  • - Violet Black: Speed
  • - Black: The anode
  • - Light Blue: Right turn
  • - Dark Blue: Beam instructions
  • - Orange: Left turn
  • - Yellow and White: Neutral
  • - Brown: Small Night Light
  • - Red: Positive power supply electric door locks come in positive
  • - Light Green Pink: 1 file
  • - Light Green Brown: 2 file
  • - Light Green Green: 3 file
  • - Light Green Yellow: 4 file
  • - Light Green Black: 5 file
  • - Light Green Blue: 6 file
  • - Green Black: Negative (ground)
  • - Blue White: Oil line

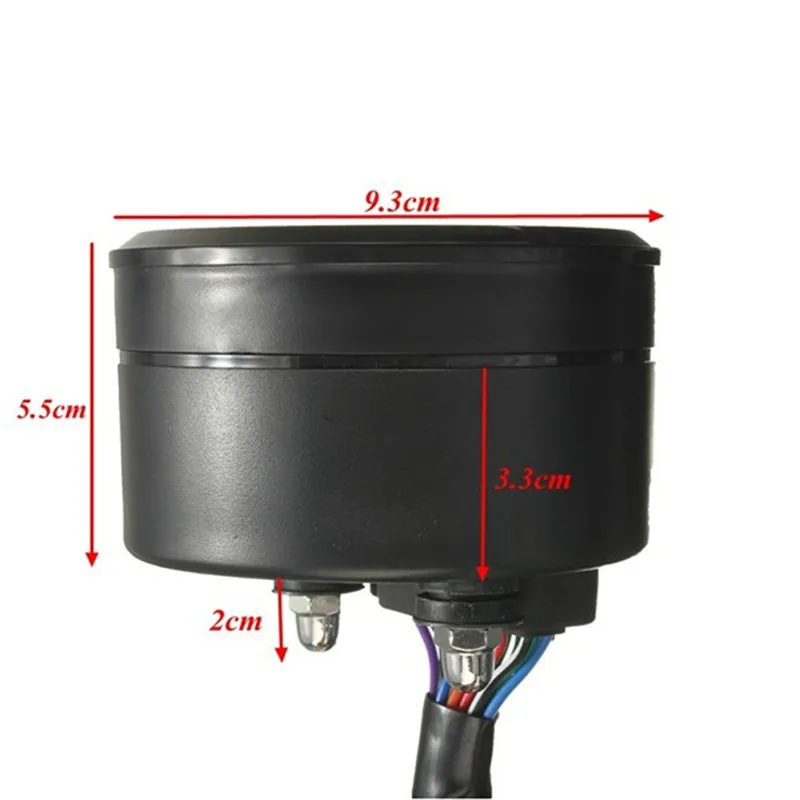

  • Product Size: About 100 x 100 x 70mm / 3.94 x 3.94 x 2.76in
  • Weight: 320g / 11.29oz
  • Note:The default is 1 cylinder, if you set to 2 or 4 cylinder,it can not be changed to 1 cylinder.

Package Include:

  • 1 x LCD Digital Speedometer Odometer

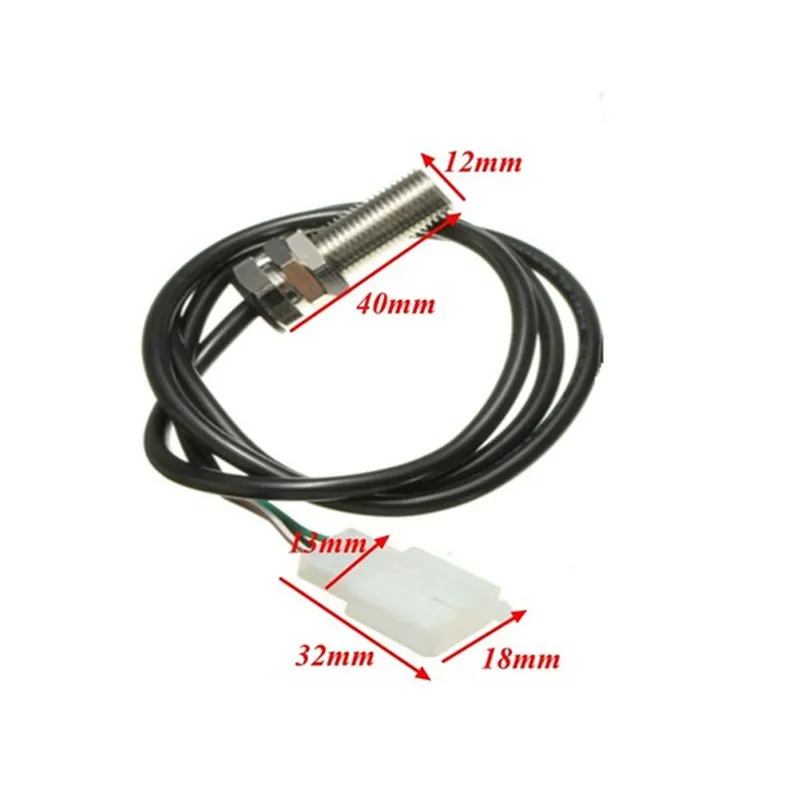

  • 1 x Sensor



Packaging Details
  • Unit Type: piece
  • Package Weight: 0.334kg (0.74lb.)
  • Package Size: 12cm x 12cm x 12cm (4.72in x 4.72in x 4.72in)
